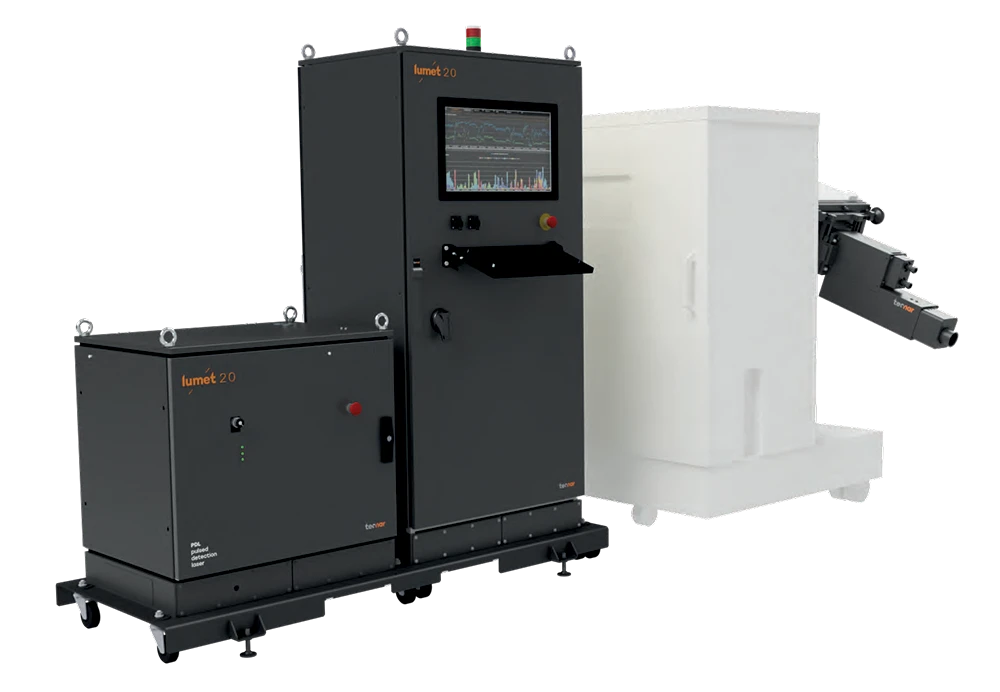

Laser-ultrasonic dynamic microstructure analytical tool for metal
Lumet 2.0 redefines metallurgical investigation for fast and easy analysis
Users can work beyond the uncertainties and time-consuming manual operations of standard metallographic methods. With its high-data acquisition rate, the Lumet 2.0 generates hundreds of hours of manual information in just a few minutes.
Work with the leader in the field
Over the years, Tecnar has earned a solid reputation for introducing laser-based online sensing technologies to a variety of industries. Every day, over 700 of our sensors provide better insight to various industries around the world. Today, innovation never stops. Tecnar continually invests in R&D for new products with regular voice-of-customer exercises. The Lumet 2.0 is the result of decades of devotion to innovation.
Steel
-
Real-time viewing of steel recrystallization as a function of temperature
-
Real-time measurement of grain size under external influence (temperature, pressure)
-
Real-time viewing of phase transition of alloys
-
Monitor the effect of line slow-down on coil properties
Aluminum
-
Real-time monitoring of alloy recrystallization
-
Testing of hardening process
High-value alloys
-
Aging studies of beta-stabilized titanium alloy
-
Monitoring phase transition in heated titanium alloy
-
Monitoring microstructure evolution of nickel at high temperature
Downloads:
Download Lumet 2.0 Brochure
Technical Specifications
Laser UT receiver
TWM – Two Wave Mixing photo-refractive receiver
Ultrasonic output bandwidth: 1.0 to 40 MHz Balanced dual detection for enhanced signal to noise Input light-monitoring detector
Detection laser
PDL – Pulsed Detection Laser
Firing rate up to 100 Hz
Peak power > 500 W
Pulse width > 80 μs
Optical wavelength: 1064 nm
Beam delivery via optical fibres
Industrial-grade IP54 enclosure
Optical probe
HEPg – Lumet option
Uses Tecnar Durabeam™ technology
Optics optimized for 1064 nm wavelength
Industrial grade enclosure IP65
Generation laser head enclosure included
Test system interface panel included
Generation laser
Short pulse green laser
Nd:YAG Q-switch solid state laser
Optical wavelength 532 nm
Nominal pulse width < 10 nsec
Nominal power output > 50 mJ at 50 Hz
Laser head mounted in HEPg
Software and digitizer
Integrated data acquisition, data processing and controlled computer
Industrial-grade PC with Windows™ operating system
Digitizer with sampling rate of 125 Msamples/sec.,
14-bit ADC and 60 MHz bandwidth
Software modules for laser control,
data acquisition and data processing

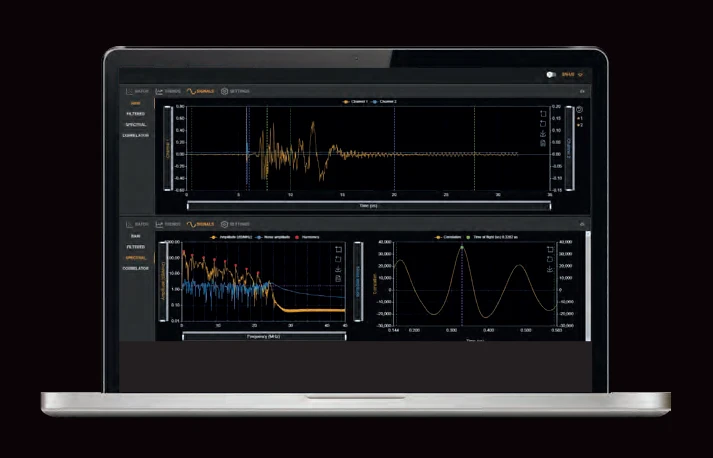

The LuMetalTools Software
The Lumet 2.0 is provided with a software package developed by Dr. Thomas Garcin, based on his over 10 years of experience in the use of laser-ultrasonics for metallurgical studies.This software package enables operators to easily extract microstructure information from the laser-ultrasonic data without being experts in the field.
Altogether, this software tool allows operators to efficiently plot microstructure characteristics as a function of an external parameter, such as grain size as a function of temperature.
