Bending Testing Machine DELTA 6-300

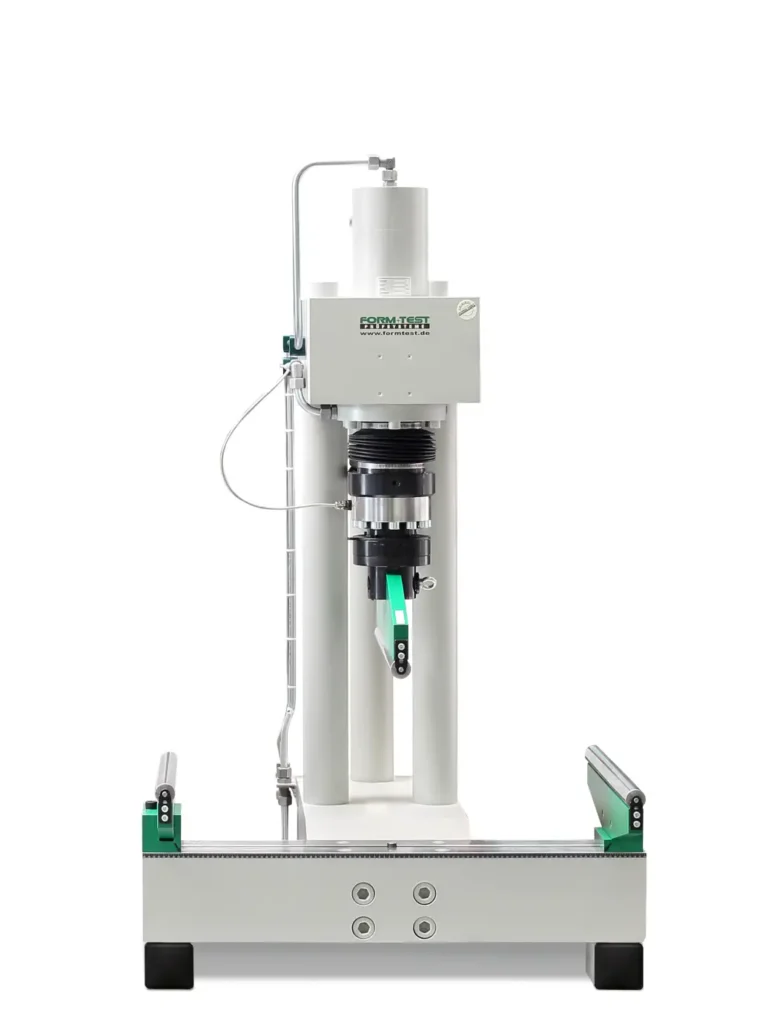

Bending / Flexure Testing Machine DELTA 6-100

ECONOMY LINE

  • Accuracy acc. to DIN EN ISO 7500-1, class 1
  • For bending strength tests on material samples especially acc. to EN 12390-5, EN 1339, EN 1343, EN 1344
  • With accessories / options also for kerb stone tests acc. to EN 1340 and for compression tests

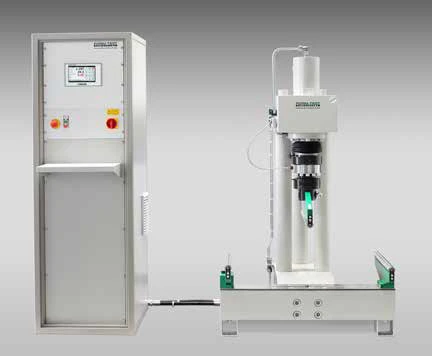

  • Separate drive station AS-C40-N
  • Automatic load increase by digital controller DIGIMAXX® C-40 with servo valve in closed loop system with nominal-actual value comparison

For the bending tensile strength test according to standards on:

  • Concrete bars
  • Concrete beams
  • Concrete kerb stones
  • Concrete paving stones
  • Natural stone paving stones
  • Natural stone
  • Natural stone kerb stones

Downloads:

Download Brochure

Download DELTA 6-100 Brochure

DIGIMAXX C-40

Technical Data – Test Frame

  • 3-column frame in C-construction
  • double-acting test cylinder
  • test load max. 100 kN
  • working pressure max: 199 bar
  • piston stroke: 220 mm
  • test area height: 220 mm
  • bending roller Ø:40 mm
  • length of bending roller: 510 mm
  • lower bending rollers distance adjustable from 80..900 mm
  • basic equipment with 3-point load
  • measuring range: 1.00…100 kN
  • display area: 0…100 kN
  • force measurement by an electronic precision load sensor
  • voltage: 3x 400 Volt, 50 Hz, 2.2 kW
  • weight approx.: 770 kg
  • available with following test loads: 60 kN, 100 kN, 200 kN and 300 kN

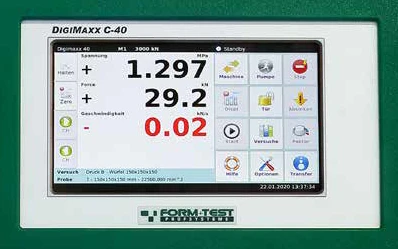

DIGIMAXX C-40

Technical Data – Digital Controller

  • Capacitive and robust 7” touch display
  • PID-controller with DSP processor
  • Modular system with expansion options up to 8 control and measuring channels – 18 Bit
  • Measuring – and control cycle 2 kHz
  • Transmission of measured value up to 1 kHz
  • Freely programmable test sequences
  • Real-time display of the measuring channels as well as of the specimen strengths and test speed
  • Authorization model with different role and access authorizations (tester, laboratory manager, service technician, administrator)
  • Automatic and manually zero-adjustment
  • Adjustable break detection
  • Adjustable piston back-travel time
  • Specimen storage for test results
  • 6 digital inputs galvanically isolated
  • 9 potential-free relay outputs
  • USB port for data export
  • Ethernet connection for communication with PC software

Accessories and Options:

  • A
    Insert for 4-point loading
  • B
    Set of pressure plates with floating axle (Ø 230 x 40 mm)
  • C
    Compression die for curbstones acc. EN 1340
  • D
    Compression device DV 600 AZ (only applicable in connection with set of pressure plates)
  • E
    Bending device BV 10 OM (only applicable in connection with set of pressure plates)
  • Lengthened bending table (2000 or 3000 mm)
  • Machine base for working height = 920 mm
  • Test software PROTEUSMT
  • Transfer Software
